No doubt, for perfect shearing with our carpet shearing machines you need a dust extractor just as good as the machines.

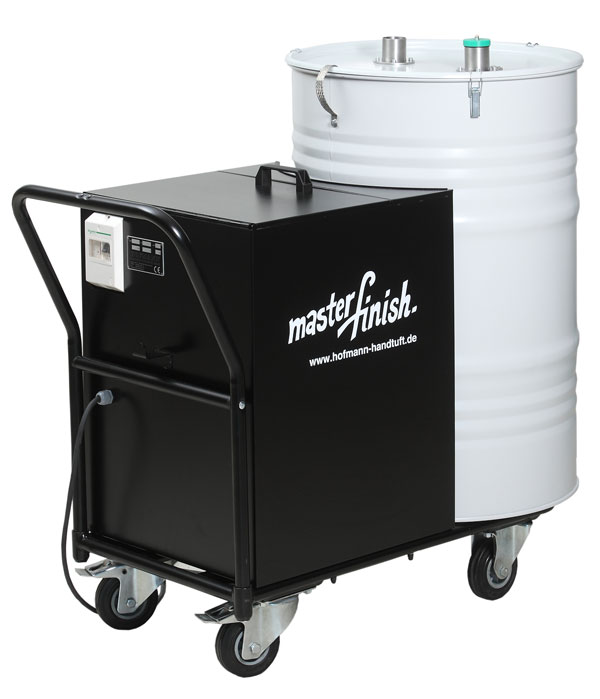

For this we developed especially for continuous operation the dust extractor system, type AS 200.
The core piece is a precisely operating side channel compress. (non contact vacuum generator).
The AS 200 is characterized by its:
- very sturdy construction
- quiet and even running
- robust (long service-life)
- no wearing parts
- large capacity (200 l barrel)
- easy to empty (fluff is collected in a bag inside the barrel.)
- suction intake filter protects the unit
- 2 connections ø 50 for:
- 1 stationary carpet shearing machine, suct.-hose ø 50 mm or
three-phase current motor motor protection switch and 5 m cable
motor 2,2 KW 2,8 m³/min, 200 mbar
approx. 90 kg
approx. 1,2 x 0,7 x 1,25 m
for TS 300 T and MTS:
1 suction hose type SS 50 ø 50 mm, length as requested
for TS 120 U, TS 120 W, TFS 120 and ST 120:
1 (2) suction hose type SS 35, ø 35 mm, length 4,8 m 1 (2) adapter type AD 35 for suction hose SS 35 on AS 200
